Tomlinson Ready Mix

Ontario, Canada

SmartRock™ Plus for Pavement Application

PROBLEM

The SmartRock™ Plus Difference

Giatec’s SmartRock™ Plus technology offers an effective solution for real-time monitoring of concrete strength during construction.

The technology is simple. First, wireless sensors are embedded in the concrete at the time of pouring. Then, the SmartRock™ Plus mobile app is used to wirelessly connect to the sensor and view the concrete temperature and strength data at the jobsite. This data can then be instantly shared between team members and used to optimize project timelines.

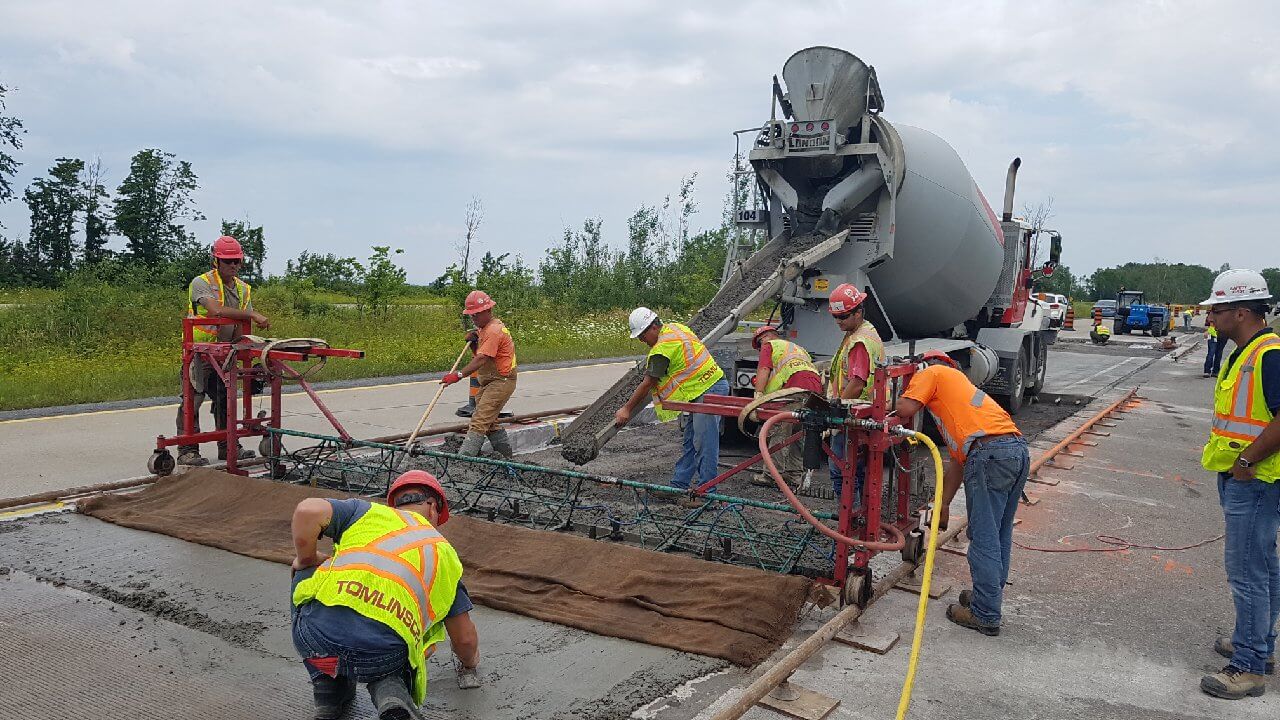

Placing concrete on highway project

Photo Credit: Tomlinson Ready Mix

SOLUTION

Optimizing Project Scheduling for Concrete Pavement

SmartRock™ Plus offers a number of advantages for pavement application, where strength data is required to optimize opening roads to traffic.

Tomlinson, a SmartRock™ Plus producer, successfully used the technology in one of their recent pavement projects. In one portion of Highway 417 where panel replacement was required, Tomlinson used SmartRock™ Plus to determine when the lanes could be opened.

Placing concrete on highway construction project

Photo Credit: Tomlinson Ready Mix

RESULTS

How SmartRock™ Plus Helped Improve Project Scheduling

Access to real-time strength results on the jobsite significantly improved project scheduling. Engineers were notified (within an hour) when they could open the concrete pavement to traffic. Previously, concrete cylinders (break tests) were used to measure concrete strength. The cylinders had to be sent to a lab 100 kilometers away from the jobsite, and contractors had to wait to receive the results from the labs.

The SmartRock™ Plus technology is based on the well-established concept of concrete maturity according to the ASTM C1074 standard. This test method is also specified by the CSA A23.1,2 as a means and method of measuring the in-place strength of concrete.

Learn More About SmartRock™ Plus

Placing concrete on highway construction project

Photo Credit: Tomlinson Ready Mix

Ryan Andre

Quality Control Manager
