SmartHubTM

Remote Access for Concrete Data

A Remote Monitoring System for Accessing Concrete Data Anytime, Anywhere

SmartHub™ | Remote Access for Concrete Data

24/7 Remote Monitoring System

Confidently check the status of your pour and get notifications anytime, anywhere, on any device.

SmartHub™ | Remote Access for Concrete Data

Real-Time Custom Alerts

Continuously stay connected and make quick decisions from any location with custom alerts.

circuits

Unlimited Sensor Connections 

Easily and automatically connect to every SmartRock sensor on your jobsite via the web or mobile application.

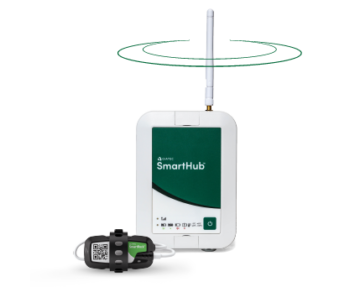

SmartHub & SmartRock sensor

Monitor SmartRock Data From Any Location​

SmartHub is a remote monitoring system that allows you to access your SmartRock data at anytime, from anywhere. These user-friendly sensors are easily installed in the concrete framework (on the rebar) before pouring to monitor your concrete’s in-situ temperature and strength in real-time. The Hub automatically collects this data recorded by the SmartRock sensors and uploads it to the Giatec 360 cloud dashboard via LTE where it is synced to your team’s mobile devices in the SmartRock app. The Giatec 360 alert system sends smart notifications to let you know when your concrete reaches specific thresholds.

SmartHub is a remote monitoring system that enables you to access your concrete data at any time, from any location. The device automatically collects your SmartRock sensor data and uploads it to the Giatec 360 cloud dashboard via LTE where it is synched to the SmartRock app on your team’s mobile devices.

SmartHub™ | Remote Access for Concrete Data
SmartHub™ | Remote Access for Concrete Data
SmartHub™ | Remote Access for Concrete Data

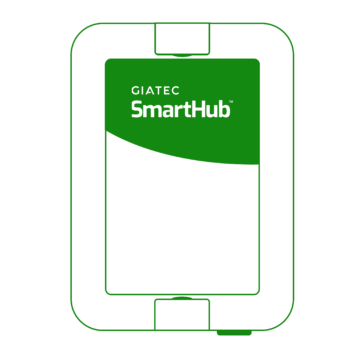

smarthub_lineart

SmartHub

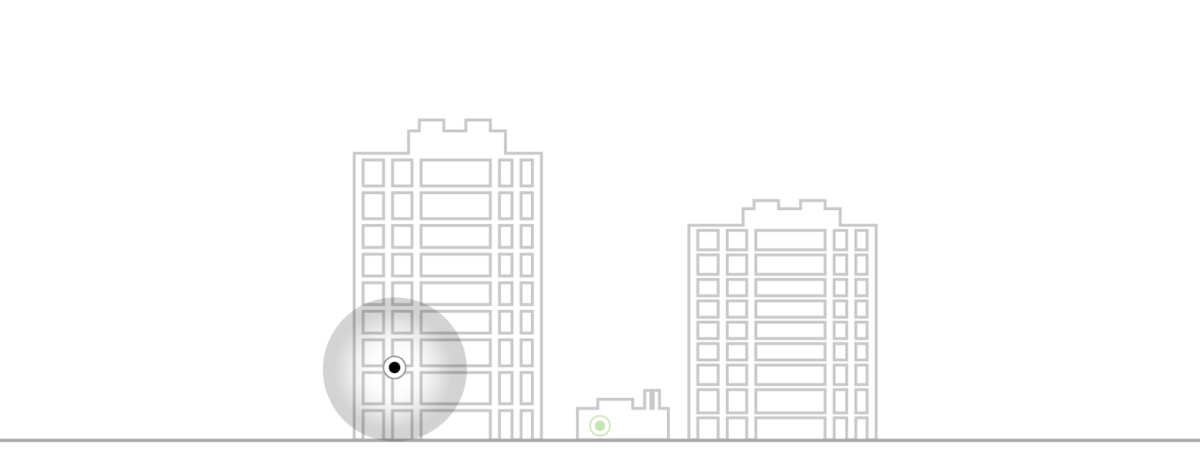

With an effective wireless signal range of up to 60 feet (18 meters), SmartHub is compatible with all SmartRock sensors. Available in North America and Select Countries.†

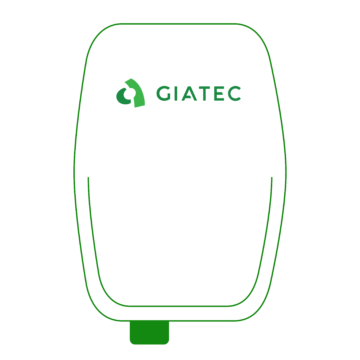

smarthub_lora_lineart

SmartHub Long Range

With an effective wireless signal range of up to 1,000 feet (300 meters), SmartHub Long Range is compatible with SmartRock Long Range sensors. Now available exclusively in North America.

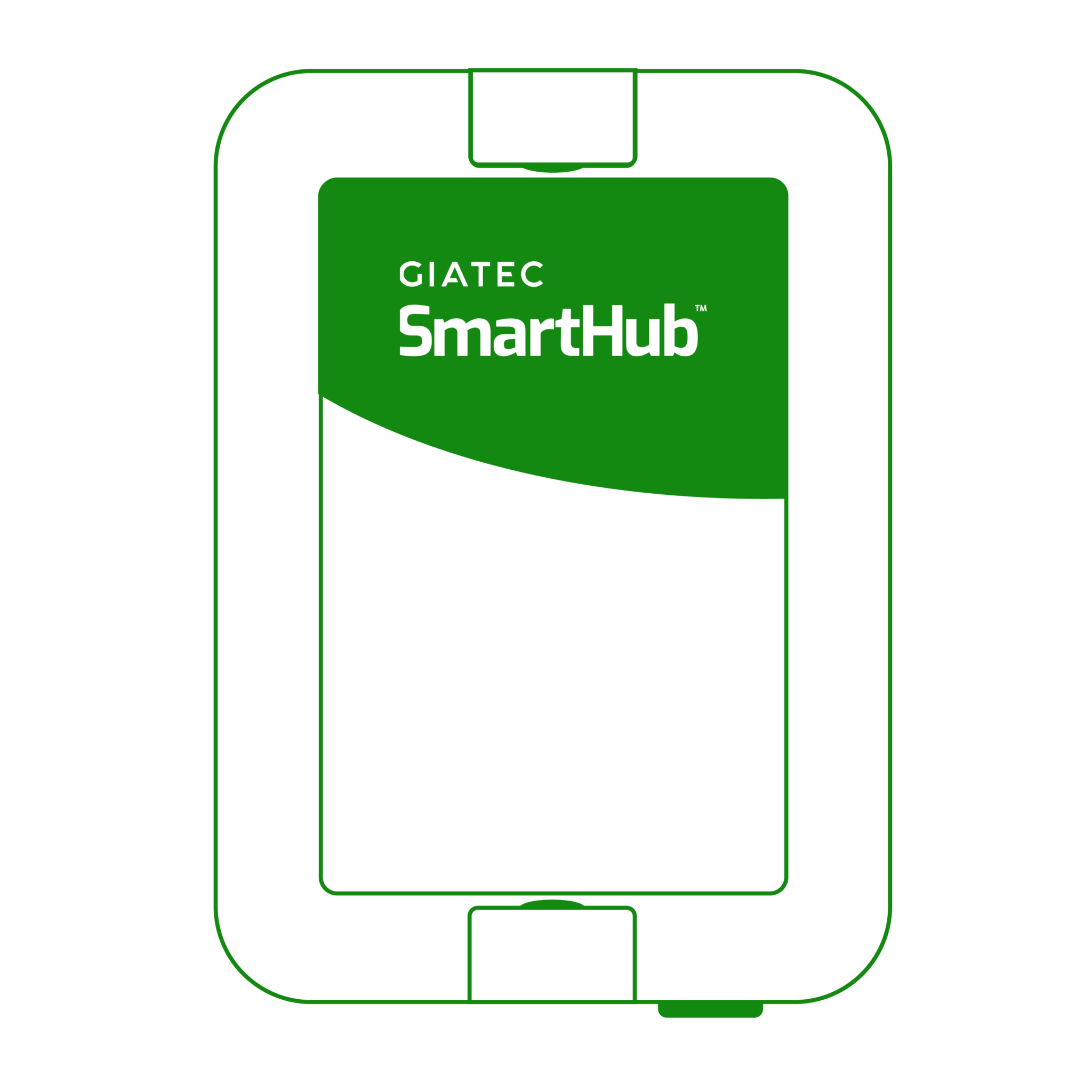

smarthub_lineart

SmartHub

With an effective wireless signal range of up to 60 feet (18 meters), SmartHub is compatible with all SmartRock sensors. Available in North America and Select Countries.†

smarthub_lora_lineart

SmartHub – Long Range

With an effective wireless signal range of up to 1,000 feet (300 meters), SmartHub – Long Range is compatible with SmartRock – Long Range sensors. Now available exclusively in North America.

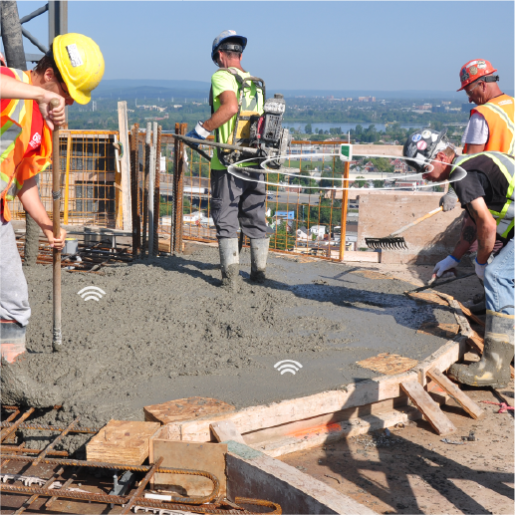

Applications​

  • 24/7 access to critical data
  • Quality control in the field
  • Reducing heating and cooling costs
  • Cold and hot weather conditions
  • Commercial projects
  • Hard to reach or hazardous locations

Hardware

  • Wire-free and wireless technology
  • Rugged and wireless design
  • Easy installation and activation
  • Battery charger

Software

  • Plug-and-play SmartHub for instant installation
  • 24/7 data collection and analysis of multiple sensors
  • Real-time data display (temperature, strength, max-min values, and graphs)
  • Easy data sharing between team members

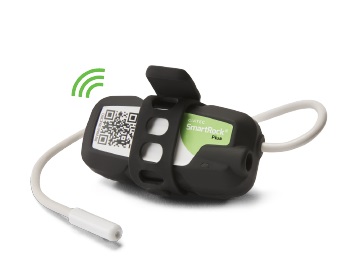

Check Out Our Newly Re-Engineered SmartRock Sensor

Install SmartHub in 3 Easy Steps


1 Login

Login to the SmartHub device using your Giatec 360 account


2 Install

Secure the Hub on your jobsite near the SmartRock sensors


3 View Results

Get real-time results and alerts on your mobile device or Giatec 360 cloud-based dashboard

SmartHubSmartHub Long Range SmartHub Long RangeSmartHub Long-Range Device
Compatibility All SmartRock Sensors SmartRock-Long Range
Wireless Signal Range* Up to 60 ft (18 m) Up to 1000 ft (300 m)
Cloud Sync Frequency 15 min 15 min
Battery Life Up to 1 Month (6-hour recharge) Requires External Power
Operating Temperature -4 to 140 °F (-20 to 60 °C) -40 to 140 °F (-40 to 60 °C)
Dimensions [Does not include antenna] 4.3 x 5.9 x 1.6 in (110 x150 x40 mm) 10.4 x 6.5 x 3.9 in (265 x 165 x100 mm)
Regional Availability North America and Select Countries† North America Only

*Based on sensor installation depth requirement

Contact a Giatec representative to confirm availability in your country

Part No.ItemDescription
900151 SmartHubSmartHub for automated wireless and remote synching of SmartRock sensor data.
G00800SmartHub Long-RangeOutdoor SmartHub- Long Range for automated wireless and remote syncing of SmartRock- Long Range sensor data.

How long does the battery last?

The SmartHub is a battery powered device. Under normal temperature conditions, the battery will last up to roughly 10 days.  The user can remotely monitor the level of the battery, the status (charging, discharging) and the location of the device through the Giatec 360 dashboard.

What is the readings frequency of the SmartHub?

The SmartHub makes a full scan of all sensors within wireless range every 15 minutes and uploads the new sensor information to the Giatec 360 cloud.

Is the SmartHub compatible in my region?

The hub communicates with the cloud through LTE or Wi-Fi connection. Please contact the Giatec Support Team, if you need help setting up your SmartHub for continuous measurements.

How does the SmartHub know which sensors to collect data from?

By logging on to the SmartHub with your Giatec 360 credentials, the SmartHub will know exactly which sensors to collect data from. It is not necessary to pair the sensors with the hub prior to the pour.

FAQs

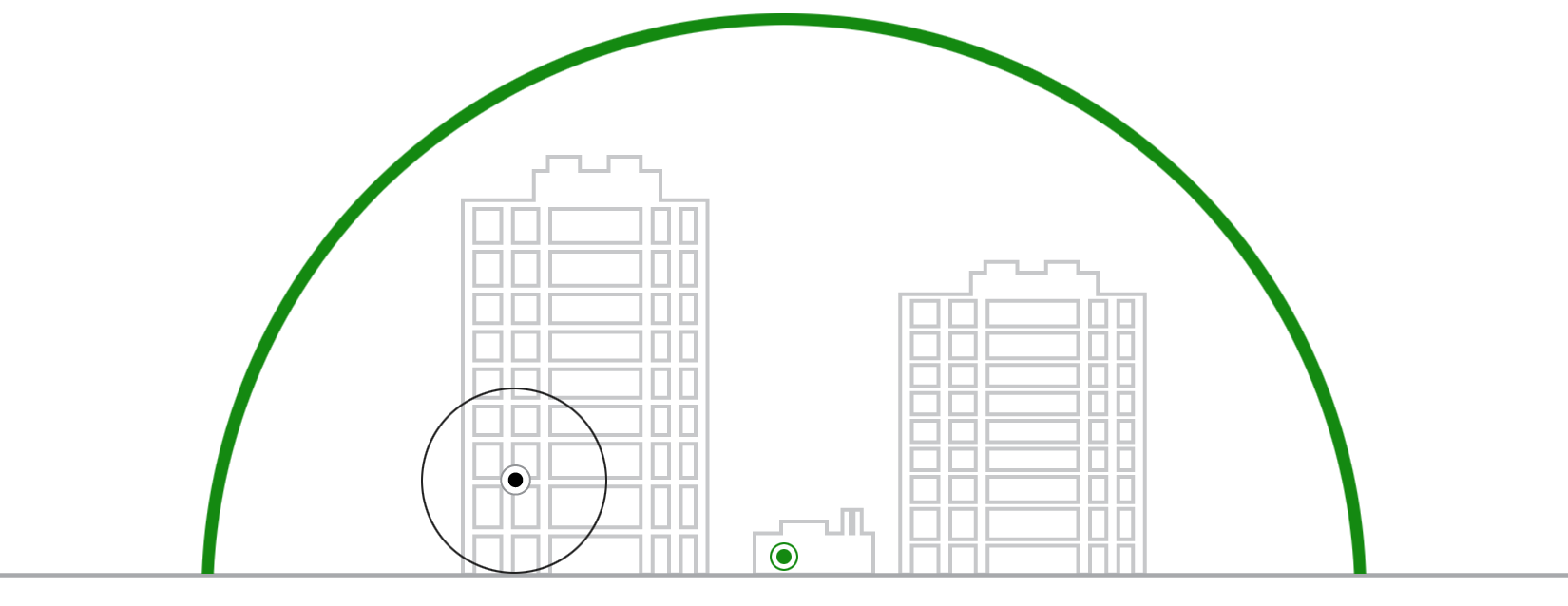

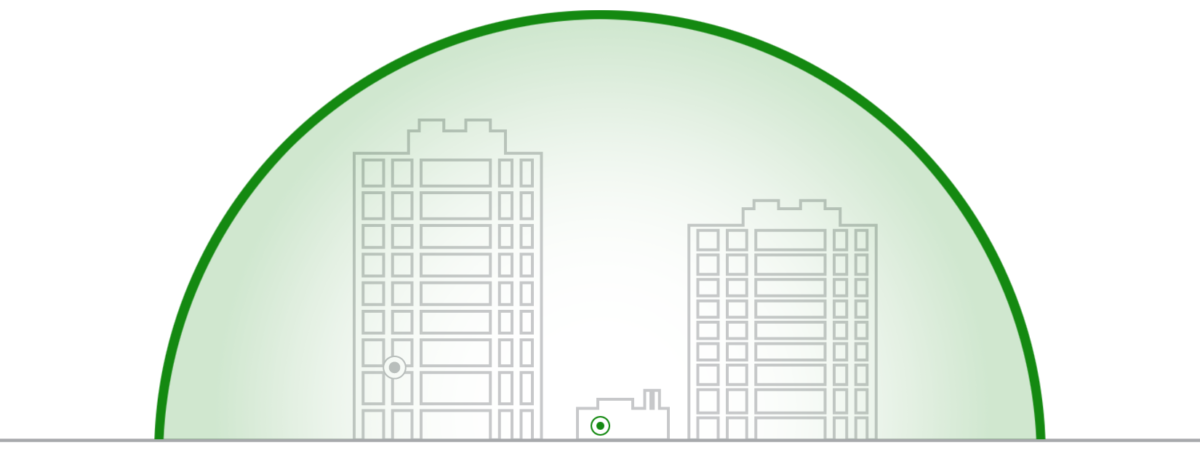

Each remote monitoring device uses a different wireless technology which impacts the wireless connection range between the sensor and the Hub. The SmartHub Long Range can be installed at a farther distance, up to 1000 ft (300m) from the 2 in (5cm) embedded SmartRock Long Range sensors. This means the SmartHub Long Range will be able to connect simultaneously to sensors in a much larger area.  The SmartHub allows for the same 15-minute remote monitoring connectivity but connects to embedded SmartRock sensors in a 60ft (18 m) radius.
Only SmartRock Long Range sensors are compatible with the SmartHub Long Range. Remote monitoring with SmartRock requires the SmartHub.
The SmartRock Long Range and SmartHub Long Range are currently only available in North America. For more information on remote monitoring options with SmartHub in your area, please contact a sales representative. 
Both SmartRock and the SmartRock Long range have an internal memory and will continue to collect data until their memory is full. Users can also collect data with their smartphone at any time, independently of whether the SmartRock is connected to a Hub or not. In the event that data transmission stops for any reason, the SmartHub is designed to transmit all missed data collected as soon as connection is regained.
