Buildings & High Rise Projects
Forget about waiting for break test results. With consistent real-time data, never have project delays by knowing when to remove formwork and move on to the next floor as early as possible.
Eliminate cylinder break delays. Know your concrete strength in real time, anywhere, on any device.

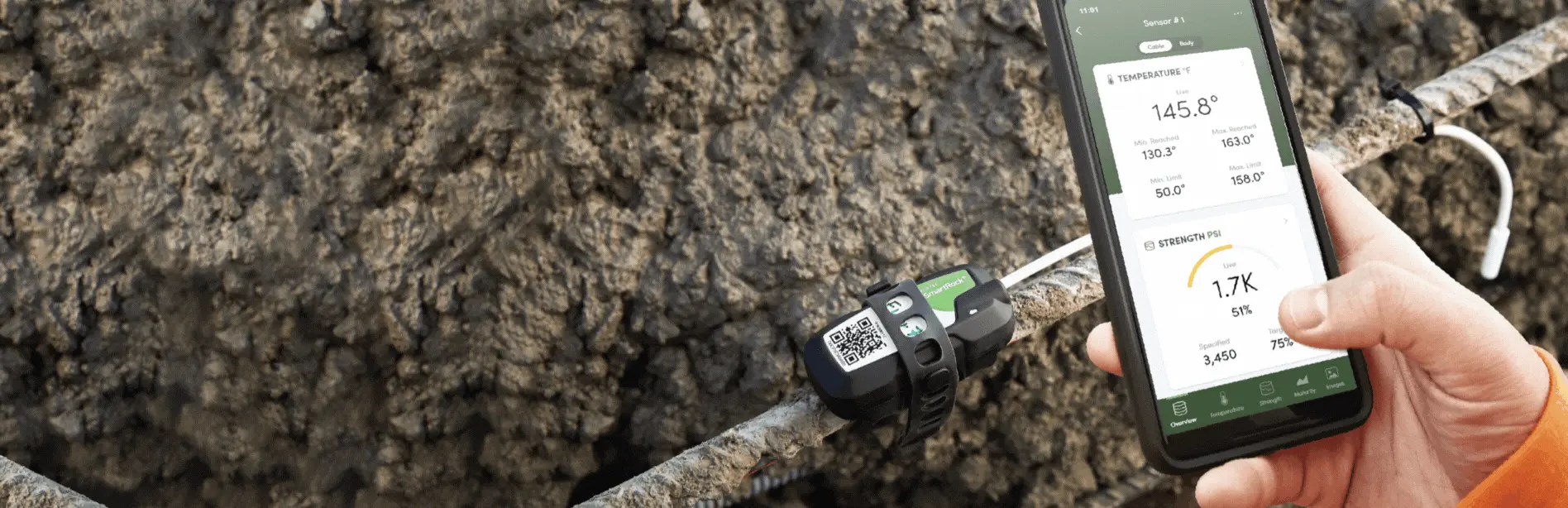

Fully embedded on the rebar with no wires or testing labs required, this easy-to-use, hassle-free sensor allows for quick decision making onsite and prevents unnecessary setbacks.
The maturity method, used by SmartRock, is approved by ASTM and ACI as an accurate and reliable test for measuring concrete strength onsite for more accurate results than field-cured cylinder breaks.
With real-time data and 24/7 remote monitoring capabilities, confidently check the status of your pour and get notifications anytime, anywhere, on any device.
Both run the same ASTM-approved maturity method. The only difference is how far the data has to travel to reach your phone.
SmartRock gives you 24/7 real-time access to concrete strength and temperature data directly on your phone, with a wireless range of up to 40 ft (12 m). Fully embedded with no wires, no labs, no waiting on break test results.
SmartRock Long Range delivers all the capabilities of SmartRock with an extended wireless range of up to 1,000 ft (300 m) via SmartHub Long Range, giving crews real-time concrete strength and temperature data from hard-to-reach locations on your biggest sites, without manual checks or wired loggers.
A Truly Wireless Concrete Sensor
Tag and install the sensor on any project in just a few minutes. SmartRock is fully-embedded in the concrete, eliminating any possibility of damage occurring in harsh construction conditions after you pour.
Profoundly Simple-to-Use Mobile Access
The SmartRock mobile app provides real-time access to concrete data either on the jobsite through direct communication with the sensor, or remotely via the SmartHub system.
Cloud-Based Project Dashboard
SmartRock® Web is a complete project management tool with advanced data analytic capabilities for evaluating your concrete mixes, monitoring the status of different projects, and gaining detailed insights into concrete temperature and strength data.
Built-In Artificial Intelligence Assistant
Roxi is the first machine learning algorithm for concrete materials that has been trained with millions of data points to offer smart suggestions and detect anomalies in concrete performance.
Project Data Integration
SmartRock can be easily integrated with any construction project management software. Automatically populate data on concrete quality on your preferred platform to generate action items and triggers on the next steps of your construction project.
Monitor max, min, and temperature differential of your placed concrete in real time — no wired loggers or data loggers required.
Monitor the strength of your placed concrete in real time on your phone. Reduce or eliminate reliance on field-cured cylinders and deliver your project ahead of schedule.
SmartRock gave us the confidence to strip formwork days earlier than we ever could with cylinder breaks. On a high-rise schedule, that means real money.
From skyline high-rises to remote highways, the same sensor delivers real-time temperature and strength data on every job.
Forget about waiting for break test results. With consistent real-time data, never have project delays by knowing when to remove formwork and move on to the next floor as early as possible.
Whether you are doing accelerated bridge construction or UHPC joint fillings, avoid unnecessary costs and delays associated with testing labs and wired loggers with accurate, real-time data and gain more insights into the strength of your concrete than ever before.
Closely monitor temperature differentials between the core and edge of your mass pours with SmartRock's dual temperature capability. Get alerts on temperature differential thresholds with SmartRock Web and follow your thermal control and curing plan without any of the hassle of cumbersome wired sensors, loggers, and thermocouples.
Accepted by the majority of DOTs, collect temperature and strength data right on your mobile device and in remote areas using SmartRock sensors and the SmartHub device. With updates every 15 minutes, prevent delays and open roads to traffic earlier.
To prevent cracking and unnecessary delays timing is everything when pulling cables in post-tensioned concrete elements. As the most accurate method of measuring concrete strength onsite, the maturity method will eliminate your reliance on field-cured break tests, so you know right away when your concrete is ready for tensioning.
Calculate how much you can save using SmartRock sensors on your next project
Based on your project specifications
| Type | Value |
| Reading Range | -22 to +181 °F (-30 to 85 °C) |
| Measurement Accuracy | ± 1.8 °F (± 1°C) |
| Measurement Resolution | ± 0.18 °F (± 0.1°C) |
| Measurement Frequency | Once every 15 mins (for 2 months of data) |
Wireless Signal Range | Up to 40 ft (12 m) For longer range options, contact us. |
| Temperature Cable Length | 12 in (30 cm) / 10 ft (3 m) / by request: 50 ft (15.2 m) |
| Battery Life | Up to 4 months after installation |
| Dimensions | L: 3 1/8″ (80 mm) W: 1 5/8″ ( 42 mm) H: 1 1/32″ (26 mm) |
The maturity method calculates concrete strength in real time by continuously measuring temperature over time at the actual pour location. Because strength development depends on both heat and time, this running measurement, called the maturity index, gives a precise picture of in-place strength from the moment of placement. It is approved by ASTM C1074 and ACI 308 as a reliable alternative to cylinder breaks.
The sensor transmitter must be installed no more than 2 inches (5 cm) from the concrete surface. This is to enable strong wireless signal strength for continued connectivity to the sensor, even long after it has been installed in concrete.
Yes. The sensors can be turned off to preserve battery and memory until the start of the pour, this is done by inserting the temperature probe back into the sensor body.
The SmartRock 3 is available in two different lengths; the shorter cable has a length of 12 in (30 cm), while the longer cable can measure concrete temperature up to 10 ft (3 m) inside your concrete structure. By request, we also offer 50 ft (15.2 m). Contact our team if you are not sure what sensor would be the best suited for your application.
The sensor takes a measurement every 15 minutes, allowing it to collect data for 2 months. However, the battery life extends for up to 4 months. This enables the user to retrieve the data for an extra 2 months once the memory is full.
The design of the SmartRock 3 sensor enables measuring temperature values at two locations simultaneously, one at the temperature probe (tip of the white cable) and one in the body of the sensor (black transmitter). The result can be visualized on the SmartRock Mobile App or the SmartRock Web, a Cloud-Based Project Dashboard, where the measurements are differentiated through the “Cable” and “Body” designation.
When the SmartRock sensor is installed inside concrete as recommended, it can transmit up to 40 ft (12 m). When the black transmitter is exposed, the range of the wireless signal can be up to 100 ft (30 m). Longer connection range can be obtained with the SmartRock-Long Range in conjunction with the SmartHub-Long Range with which data can be transmitted for up to (300m) when the body of the sensor is embedded at recommended depth and up to 1000ft (300m) when the body is placed outside the concrete.
Yes. Please ask for customized length options when you are ordering your SmartRock package.
The design of the SmartRock 3 sensor enables measuring temperature at the tip of the white cable (temperature probe) and on the body of the sensor (the black transmitter). On the sensor page of the SmartRock application or the SmartRock Web platform, users can toggle between the two temperature values identified as “cable” and “body” at the top of the page. The temperature graph will display both temperature profiles and will highlight the difference between the measurement points.
The QR code on the SmartRock 3 sensor is a feature for tagging sensors on the mobile application. The application will guide you through adding new sensors to your projects. To do so, the application will prompt you to scan the QR code on the sensor.
Anytime the temperature probe (the white cable) is removed from the sensor, this activates the sensor. The LED light located on top of the sensor body will blink 3 times to indicate that the sensor was properly activated and is ready to be used.
The SmartRock 3 has three main physical components, the white cable, the sensor body, and a rubber installation strap. The activation and installation procedure was enhanced from 2 metal wires that were twisted around the rebar in the SmartRock 2 generation, to a rubber strap meant to tightly install and secure the sensor. The installation strap was specially designed to install the sensors on different sizes and types of rebar. It can also withstand 40 lbs of force.
The SmartRock – Long Range has an additional wireless communication capability compared to the SmartRock. This means it can be used in the exact same way as the SmartRock with the addition of long-range capabilities for remote monitoring with the SmartHub – Long Range.
Only SmartRock – Long Range sensors are compatible with the SmartHub – Long Range. Remote monitoring with SmartRock requires the SmartHub.
Yes, both the SmartRock and SmartRock – Long Range collect data every 15 minutes for two months. It is also possible to connect to the sensors and collect stored data from up to 4 months (for the duration of its battery life).
