Wireless Concrete Resistivity

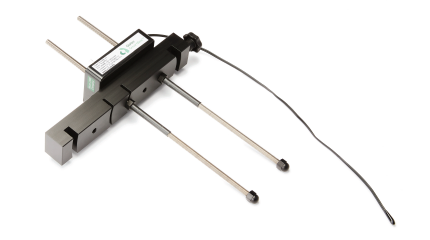

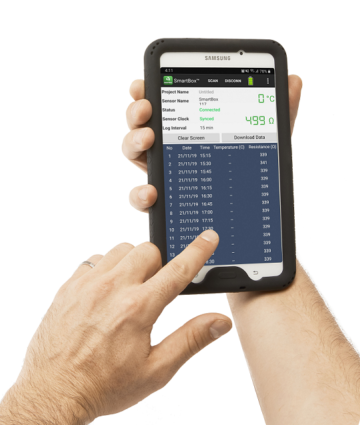

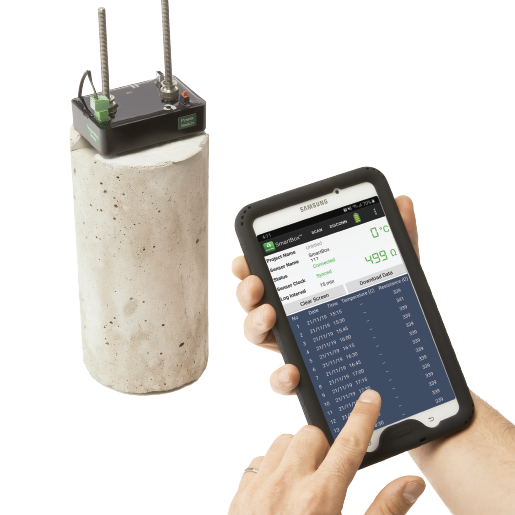

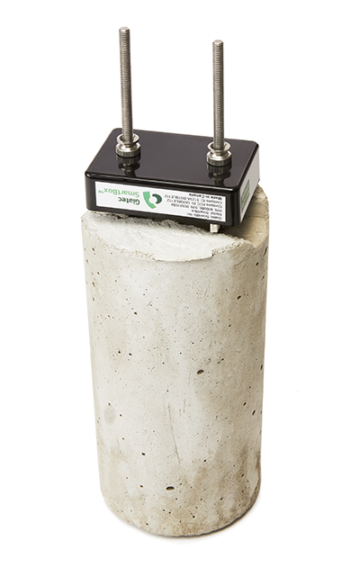

Giatec SmartBox™ is a compact wireless device for the measurement and monitoring of electrical resistance and temperature in fresh concrete. The continuous measurements are recorded on SmartBox™ and can be downloaded using the mobile application on Android smartphone/tablet.
The electrical resistivity of fresh concrete has been shown to provide a good indication on the water content as well as setting and hardening of concrete. SmartBox™ provides an efficient tool for various research studies in these areas.
The SmartBox™ concrete testing equipment can be used to monitor the electrical resistivity and temperature of fresh concrete. This can provide information on:
- Water content in fresh concrete
- Prediction of setting
- Setting time measurement
- Crack detection in concrete
- Wireless technology
- Compact design
- Simultaneous measurement of electrical resistance and temperature
- Optimized frequency for fresh concrete
- Long battery life on a single charge(about 3 months*)
- Mobile application for Android smartphone and tablet
- Easy data sharing
- Patent pending
This method of resistivity measurement is not standardized and is suitable for various research applications. However, AASHTO TP 95-11 provides the test standard for surface electrical resistivity measurement. An ASTM standard is also under development for this test. A copy of the AASHTO test specification entitled "Standard Method of Test for Surface Resistivity Indication of Concrete's Ability to Resist Chloride Ion Penetration" can be obtained from here.
remove_circle_outlineadd_circle Technical Specifications
|Reading Range||Measurement Frequency||Accuracy||Measurement Time|
|1 – 3000 Ω||10 kHz||± 2%||<1 second|
|Operating temperature ||-20 ~ 45 °C|
|Operating humidity||10 ~ 90%|
|Battery Charger Specification||Input:100-240Vac (50-60Hz)/Output:5Vdc(500mA)|
|Dimensions of SmartBox™ unit||85 x 55 x 22 mm|
remove_circle_outlineadd_circle Purchase Items
|900088||SmartBox™ Full Package||SmartBox™ unit, Plastic spacer for rods, 10 pairs of customized rods, 10 temperature sensors, USB charger and cable, Ruggedized tablet, Android application for Tablet, user manual (Tablet is included)|
|900089||SmartBox™ Essential Package||SmartBox™ unit, One pair of customized rods, Temperature sensor, USB charger and cable, Android application for Smartphone, user manual (Smartphone is not included)|
The following replacement parts are available upon request:
|900086||SmartBox™ Unit||Measurement unit - should be purchased with one of the packages|
|900085||SmartBox™ rods||10 pairs of customized rods|
|900087||SmartBox™ temperature sensors||pack of 10 temperature sensors|
Q1: How long is the battery life?
A: The battery life on a single charge is about 3 months for basic data log under room temperature.
Q2: What is the log interval for resistance and temperature?
A: The standard log follows this schedule:
a. First 24 hours: every 5 minutes
b. Next 72 hours: every 1 hour
c. After that: every 6 hours
We also have custom log which provides a fix log interval in minutes (1 min to a couple of days). This can be changed by the user in the app menu.
Q3: What is the maximum number of data that can be recorded on the SmartBox?
A: The device can store 1024 data points in the following format:
Time | Date | Temp (C) | Resistance (ohm)
10:20 | 10/02/2015 | 23 | 789
