BlueRock | Concrete Humidity Sensor

BlueRock is a rugged, waterproof concrete data sensor designed to wirelessly monitor the relative humidity and temperature of concrete from fresh to hardened stages.

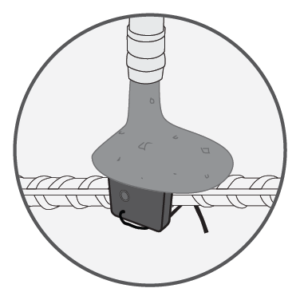

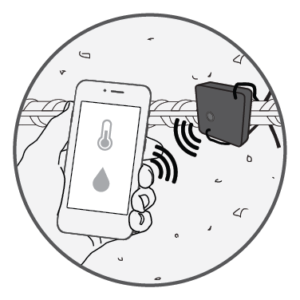

BlueRock can be placed in the concrete at the pouring time to monitor the temperature and humidity of concrete in-situ. The continuous measurements are recorded on the BlueRock memory and can be downloaded at any time during the concrete setting and hardening using BlueRock mobile app.

The continuous monitoring of concrete relative humidity and temperature can be used as a QC/QA method. By knowing the level of humidity in the concrete, flooring companies can decide on the timing of installation of floor covering (such as resilient flooring, epoxy coating, or wood) based on the type of concrete materials. Unlike the current destructive and time-consuming methods that measure only one data point at the testing time and require drilling a hole in concrete, BlueRock offers an embedded wireless solution for continuous measurement and accurate monitoring of internal humidity variations in concrete over time.

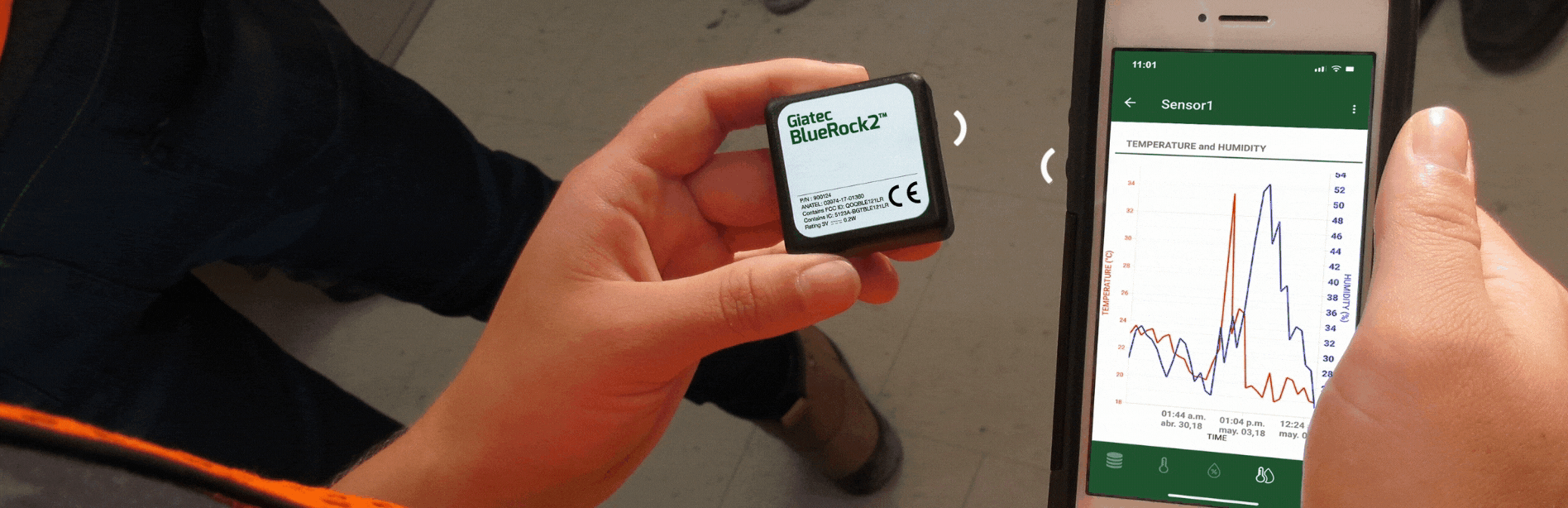

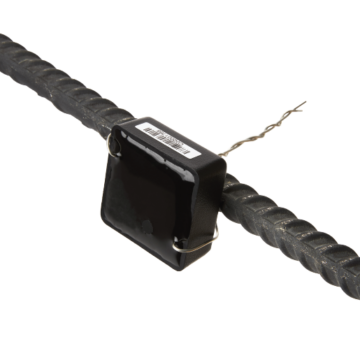

BlueRock 2 wireless concrete relative humidity sensorBlueRock 2 overviewBlueRock 2 mobile appBlueRock 2 mobile appBlueRock 2 mobile app
ASK AN EXPERT

remove_circle_outlineadd_circle Applications

BlueRock can be used to monitor the temperature and relative humidity of fresh and hardened concrete. This can provide information on:

  • Drying level in concrete floors
  • Effectiveness of curing conditions
  • Optimization of flooring installation
  • Water penetration in concrete
  • Monitoring of humidity gradients

remove_circle_outlineadd_circle Features

Hardware

  • Wireless technology
  • Rugged and waterproof design
  • Continuous measurement and recording of temperature and relative humidity at a wide range of user-selected intervals; ranging from one measurement every few minutes to every several hours.

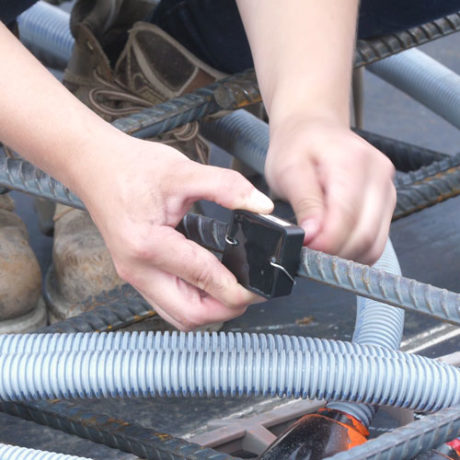

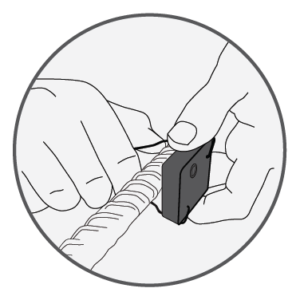

  • Easy installation and activation through tying the wires together
  • Long battery life (up to 2 years1)
  • Patents pending

Software

  • Real-time data display of relative humidity and temperature
  • Free Android and iOS apps for smartphones and tablets

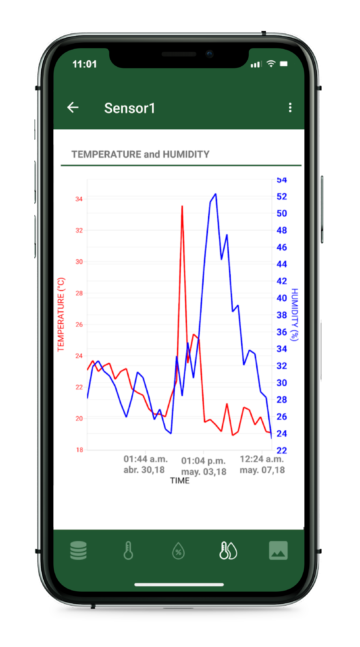

  • Interactive history trend plotting of temperature and relative humidity
  • Easy data organization among different embedded sensors
  • Easy data sharing of the most updated sensor data
  • Full report generation in csv and pdf format

1Operating at room temperature with periodical connections to the sensor.

remove_circle_outlineadd_circle Technical Specifications

General

Reading Range Accuracy Wireless Signal Range Dimensions
Temperature: -30 to +60 °C
(-22 to +140 °F)
±1 °C
Relative Humidity: 0 ~ 100 % 20 to 80%, ±2%
<20% or >80%, ±3%
Hysteresis ±1%
Up to 6-8 meters
(20-26 feet)
39 x 39 x 20 mm
(1.5 x 1.5 x 0.7 inches)
1 Accuracies are tested at Outgoing Quality Control at 25°C and 3.0V. Values exclude hysteresis and long term drift and are applicable to non-condensing environments only.

2 The wireless communication range is reduced as the sensor is embedded deeper in the concrete. The maximum recommended concrete depth for embedding the sensor in the field is 5 cm. At this depth, the user can communicate with the sensor within a couple of meters.

3 Normal operating range: 0-80%RH, beyond this limit sensor may read a reversible offset with slow kinetics (+3%RH after 60h at humidity >80%RH).

Note: Specifications are subject to change without notice.

remove_circle_outlineadd_circle Purchase Items

Part No. Item Description
900068 BlueRock sensor Temperature and relative humidity temperature for monitoring fresh concrete in real-time.
